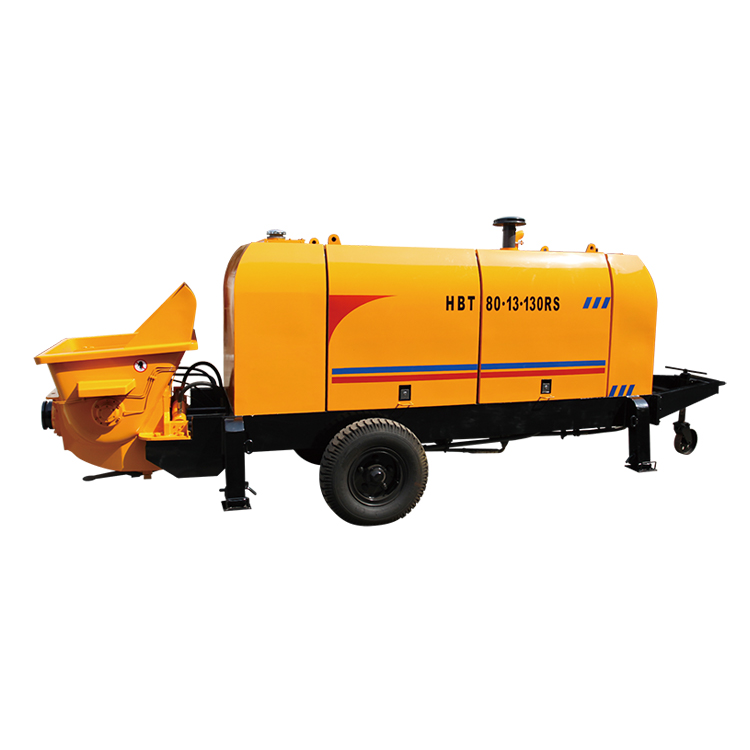

Concrete Pump

  • Category:Public Building Machine
  • FOB Price:$22,000.0 - $35,000.0 | Get Latest Price
  • Min.Order Quantity:1 Set
  • Supply Ability:200Set/Sets per Month
  • Port:Ningbo/Shanghai China
  • Payment Terms:L/C,T/T
Add to Cart Leave a Message
Product Detail:
Model HBTS80.13-90E HBTS80.16-110E HBTS80.13-130R HBTS40-12-55 HBTS30-10-45 HBTS25-8-37
Max. Theoretic Conveying
Capacity		 81m³/h 81 m³/h 88m³/h 40m³/h 30m³/h 25m³/h
Max. Theoretic Conveying
Pressure		 13Mpa 16Mpa 13Mpa 12Mpa 10Mpa 8Mpa
Concrete Cylinder(Bore X Stroke) Φ200/1800mm Φ200/1800mm Φ200/1600mm Φ180*1000 Φ160*1000 Φ140*750
Feeding Hopper Capacity 680L 680L 680L 0.4m 3 /1100mm 0.4m 3 /1100mm 0.3m 3 /1100mm
Diameter of Discharging Gate 180mm 180mm 180mm 120-230mm 120-230mm 120-230mm
Power 90Kw 110Kw 130KW 55KW 45KW 37KW
Power Type Electric Motor Electric Motor DEUTZ Diesel
engine		 Electric Motor Electric Motor Electric Motor
Brand of Main Oil Pump German Rexroth
(Japanese Kawasaki)		 German Rexroth
(Japanese Kawasaki)		 German Rexroth
(Japanese Kawasaki)		 Japanese Kawasaki Japanese Kawasaki Japanese Kawasaki
Main Cylinder Bore x Stroke Φ125/1800mm Φ140/1800mm Φ140/1600mm Φ180*1000mm Φ160*1000mm Φ140*750mm
Capacity of Hydraulic Oil Tank 580L 580L 580L 200L 200L 200L
Rated Conveying
Distance		 Vertical 280m 360m 360m 180m 150m 130m
Horizontal 1200m 1600m 1600m 600m 500m 400m
Total Weight 6000Kg 6200Kg 6480Kg 3200kg 3000kg 2500kg
Overall Dimension (L x W x H) 6200*2160*2600mm 6200*2160*2600mm 6000*2160*2600mm 4500*1500*1800mm 4500*1500*1800mm 4400*1450*1700mm
